Created :
Written by Support InfoBridge
Overview
Microsoft has decommissioned Basic Authentication for EWS. This applies only to the cloud-based Microsoft 365/Exchange Online products; there are no changes to EWS capabilities of on-premises Exchange products , more info
The Synchronizer uses EWS (Exchange Web Services) and supports the latest OAuth authentication and authorization techniques.
The administrator will be using the Microsoft 365 Token Authentication Manager to send an invitation to all the users who need to be linked in the Synchronizer. The users can authorize the Synchronizer and as soon as that is done the administrator is allowed to link the user in the Synchronizer.
Preparations
The Synchronizer admin, program and service need to start in Exchange Token mode. This can be done by adding an extra parameter to the start command of the Synchronizer and the Synchronizer Admin shortcut. And to the InfoBridge Service in the register.
Synchronizer program and Synchronizer Admin
The parameter to use is /ET
The start command in the shortcut properties should look like this:
"C:\Program Files (x86)\InfoBridge\Exchange Online Synchronizer\InfoBridge Synchronizer Administrator.exe" /DC /ET
Synchronizer Service
In the registry go to: HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services
Select the InfoBridge Synchronizer Service and open the ImagePath.
In the Value Data field add the parameter /ET
"C:\Program Files (x86)\InfoBridge\Exchange Online Synchronizer\InfoBridge.Synchronizer.Service.exe" /ET
Microsoft 365 Token Authentication Manager
Start the Synchronizer Admin

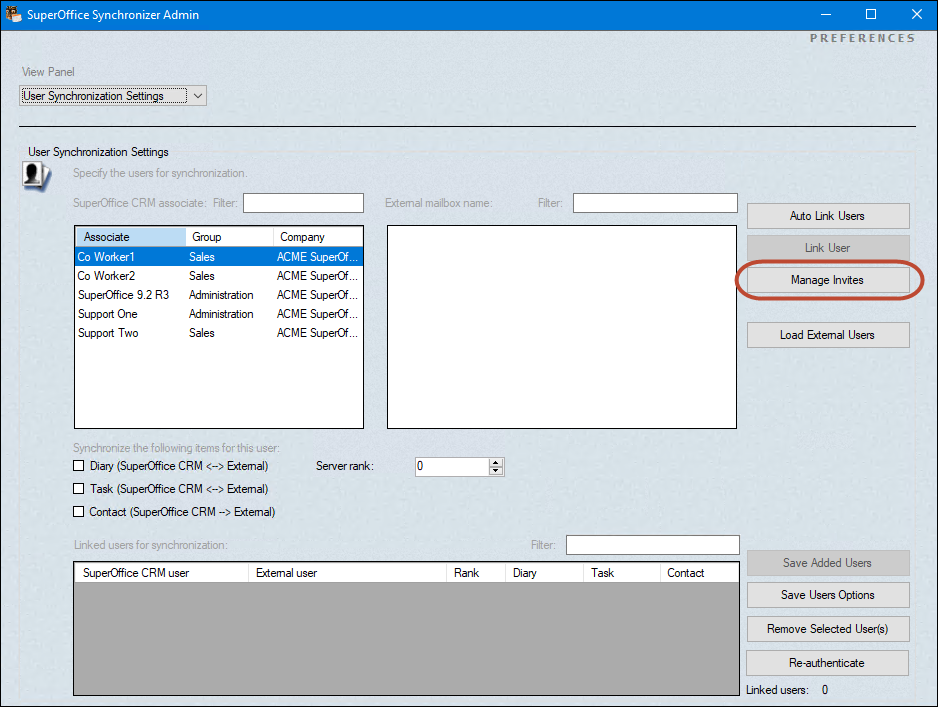

Go to the panel User Synchronization Settings
Click on Manage Invites to start the Microsoft 365 Token Authentication Manager
All SuperOffice associates will be shown in the Token Manager. Select the users who need to be synchronized. By clicking the Send invites to selected users button, an email can be send to the selected users (to the e-mail address specified in SuperOffice, so make sure these are correct!).

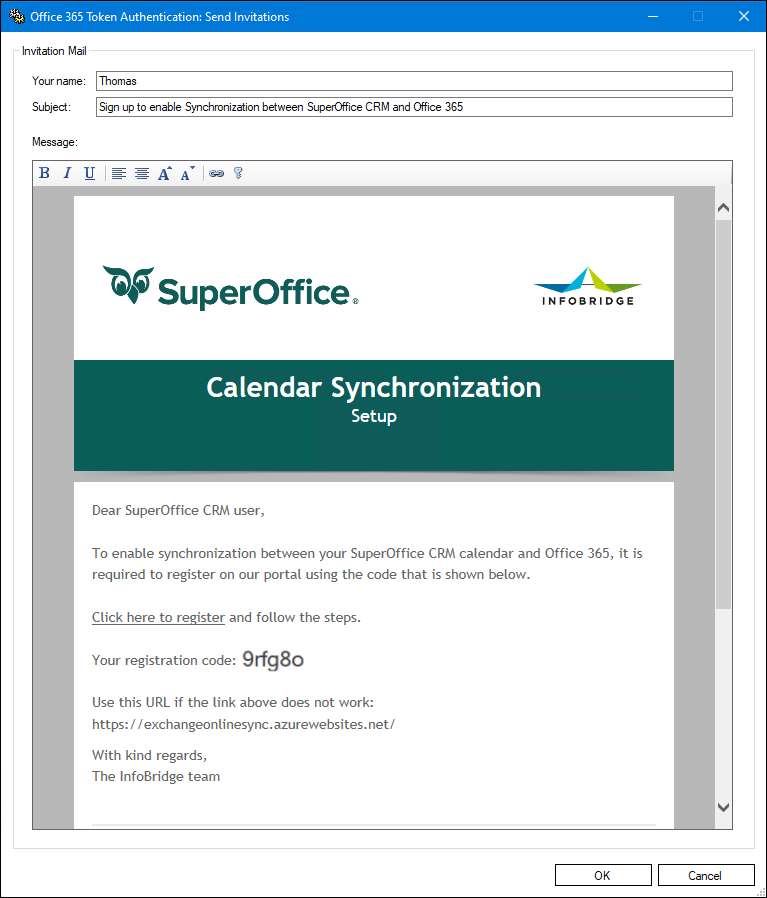

In the Invitation mail the administrator can customize the text and add his name in the Your Name section.
Note: The Emails are send from the address noreply@infobridgeuniverse.com so make sure this address is not classified as spam.
If the administrator wants to inform his users in another way, that is also possible. He just needs to provide the users with the authorization code (in the screenshot above this code is 9rfg8o) and the URL to the M365 authorization platform: https://exchangeonlinesync.azurewebsites.net/

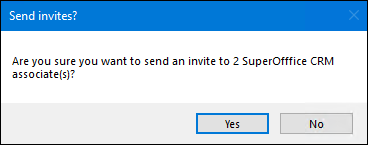

Click Ok and Yes in the next pop-up
The invites are now send to the users

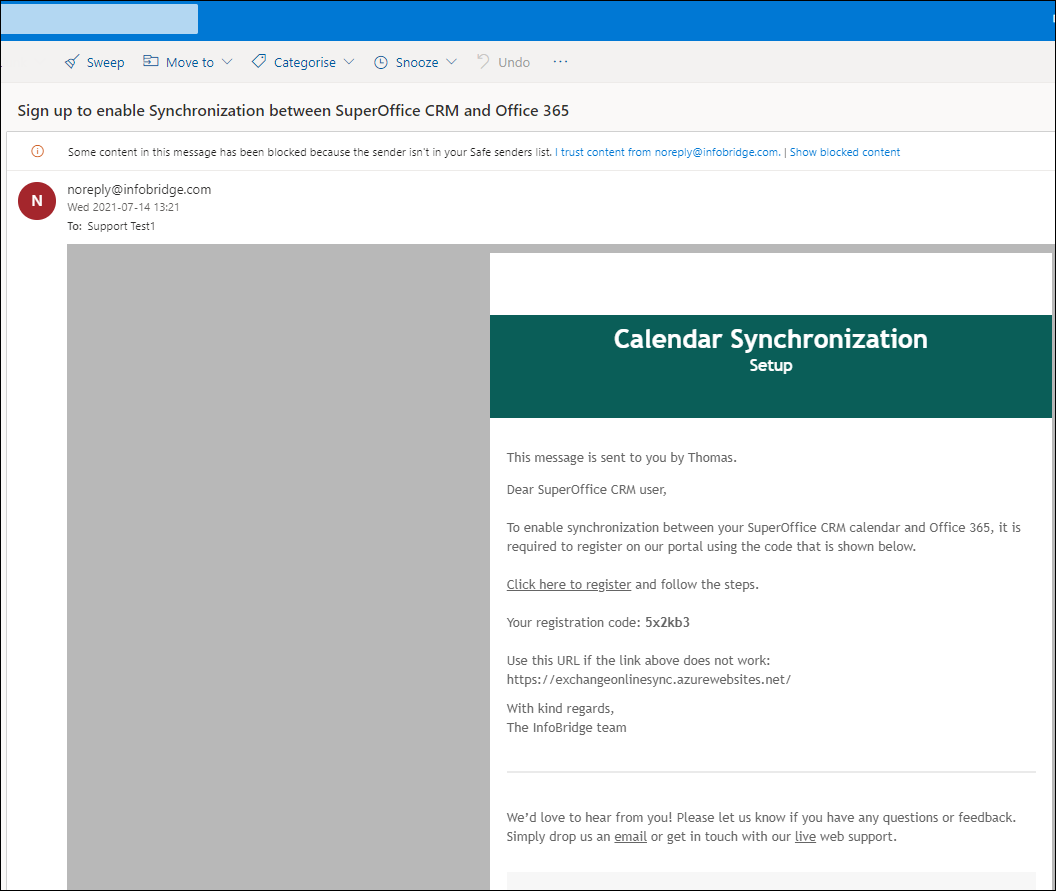

From the email the users need to click on the Link 'Click here to register'

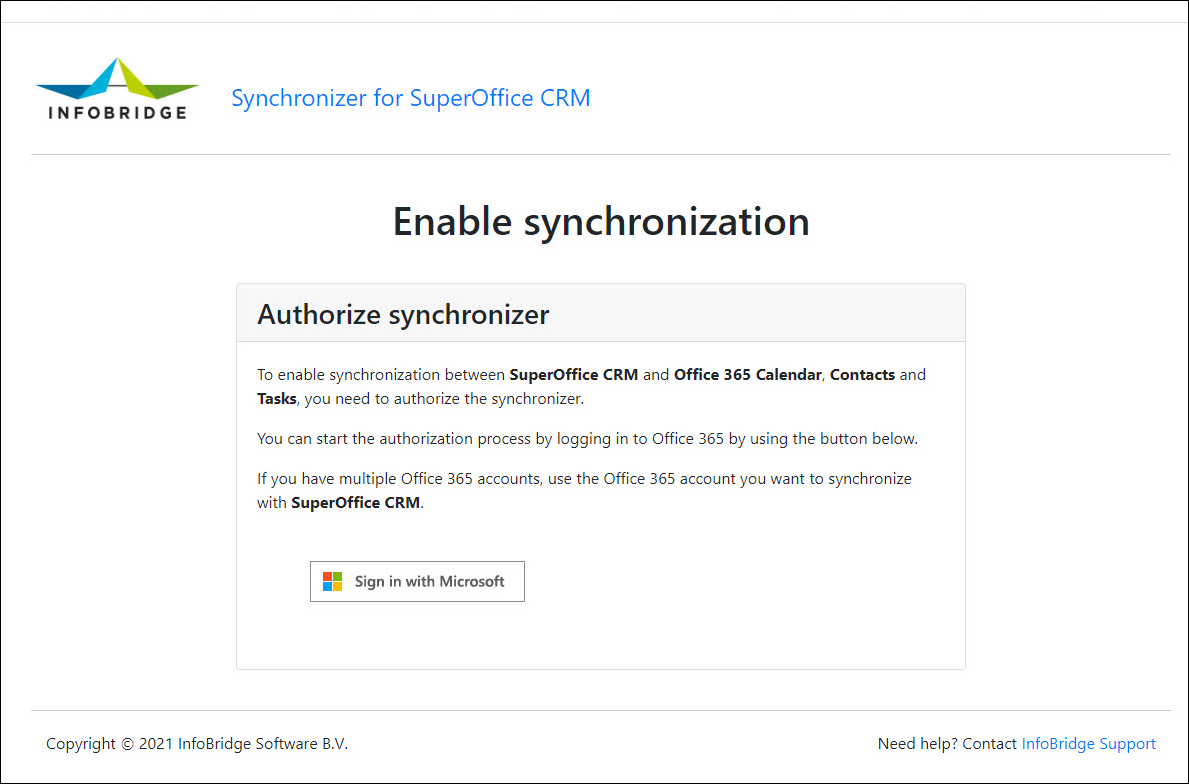

This will bring them to registration page for the Synchronizer where they can Sign in with their Microsoft 365 account
After Signing in the registration is completed
The administrator is now able to link the users in the Synchronizer admin.
-
- First click the Load External Users button.
Note: Only the users who have accepted will be loaded. - Choose the SuperOffice associate to link and select the corresponding mailbox
- Select which items (Diary, Task, Contact) need to be synchronized
- Click on the Link User button to link
- Click the Save Added Users button to save the linked user(s) in the SuperOffice database.
- First click the Load External Users button.
Optional
As an optional step you can even choose to delete the online registration data after all users are linked. In the Microsoft 365 Token Authentication Manager you need to click on the Delete Registration button. After this all data from the customer will be deleted from the online database.
Re-authentication
If a user needs to re-authenticate (this can happen when a user has changed their Microsoft 365 password) you can click on Re-authenticate in the User Synchronization Settings panel. You can also setup that re-authentication e-mails are send automatically. You can do this in the Notifications panel.
Troubleshooting
You can see which user(s) have authentication problems in the User Synchronization Settings panel in Synchronizer Admin.

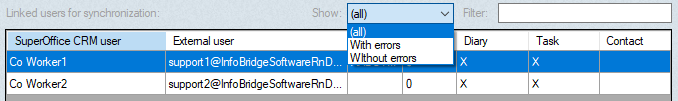

In the dropdown menu above the linked users, you can select to see all users, users with errors or users without errors.
When you hover over a user with errors, an error message is shown.
NOTE1: The user status is a snapshot from when the Synchronizer Admin has been started. To refresh the user status, a restart of Synchronizer Admin is needed.
NOTE2: Syncing for users with authentication problems will restart automatically once they have
re-authenticated. However, if the synchronizer service was started with users that had authentication problems, a restart of the service is necessary to get these users synced again.
